No one rises higher than Peak!
Spindle speeds – 24K to 60K
Tool sizes up to 1”
Smaller stepovers & depth of cuts
High feedrates (61m/min)
Acceleration > 1g
Polymer Concrete Base
Heavy Base, lighter slides
Direct Drive Technology On All 5 Axes

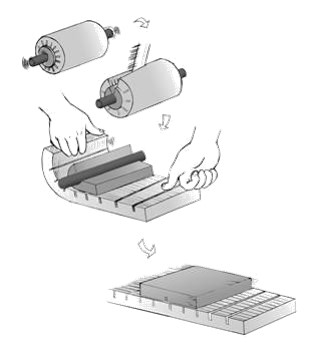

Implementation of a well-known technology
Mikron High Speed Machining Centers have features direct drives on both rotary and tilt axes of the Mikron MILL S/Mill X/HSM/XSM range since 2001 and direct drives on all linear axes (X, Y, Z) since 2009.
Highest dynamic
Highest stiffness
Excellent precision
No pitch error, no reverse error
No wear
Water cooled primary and secondary part => no thermal deformation of the machine
Circularity Test - Ball Screw vs. Linear Drive
Feed F = 5000 mm/min
Blue plot: LP
Red plot: ball-screw
Advantages of High Acceleration
| High Average Feedrate | High Accuracy | Low Tool Wear |
 |
 |
 |
| Faster Machining Times | Improved Quality | Lower Tool Costs |
Acceleration Differences Between Conventional Milling & High Speed Milling
Hard milling of an injection mold cavity for screw driver handle
 |
Ex. Influence of acceleration and the machining parameters on tool life and machining time of the cavity. Material : 1.2344 HRC 52-54 Required operations:7 Machines: HSM Machine - 1G acceleration | Conventional machine - 0.2-0.3 G acceleration |

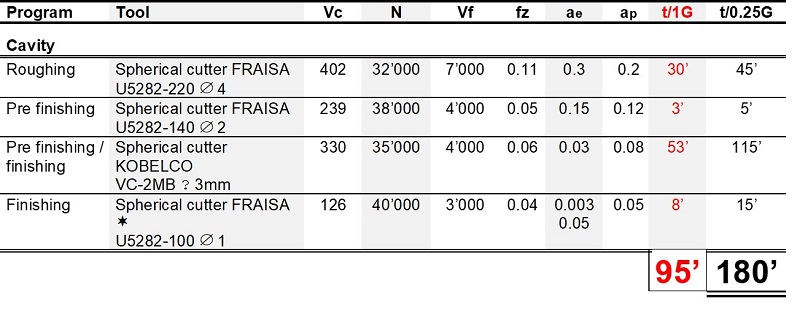

Run Time Comparison Between 1G Acceleration (HSM) & .25G Acceleration (Conventional Milling)
 |
|
Using same technology (speed ,feed, tool and NC-Program)
The machining time is cut into half when high speed machining
Pre finishing and finishing operation, with lots of direction changes and very fine stepovers (Ra 0.6) are the main reason of the time saving |
High Speed Machining Accuracy
Dynamic Accuracy
Stability, high dynamic drives and ingenious software are primary prerequisites for maximum precision and best workpiece surface quality
-
Optimized force distribution within castings
-
High-precision direct drives and guides for high dynamics and rigidity
-
Direct path measuring system in the linear and rotational axis
-
Intelligent software compensation
Thermal Accuracy
The Mikron Mill S series leads precision machining into a new era.

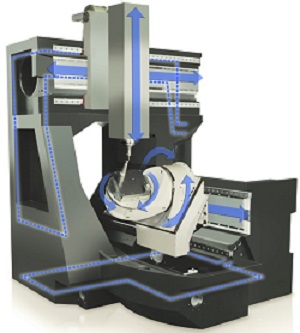

Sophisticated temperature management systems comprises separate and independent cooling circuits of all heat sources and machine body as follows:
- X, Y, Z, B, C drives
- Machine body
- Spindle with Opticool or CoolCore technology
- Electronics cabinet
Highest Part Precision is the ultimate result of this solution's active stabilization enabling highest stability and process reliability
Static Accuracy
Perfect machine design with highest mechanical requirements provides the basis for a high-precision machine. Moreover, GF Machining Solutions spares no effort to implement state-of-the-art components to create the best package for your Milling applications
Mikron DNA
|
DNA
|
User Impact
|
What's the Big Deal?!
|
| Integrated Chuck | Less Stack Error - Reach your tolerances faster | Rarity in the market |
| Direct Rotary Torque Table | Dynamic, Precision, Less Wear | Since 2001! Made in Mikron factory; not bought |
| Step-Tec Spindle | High RPM, 24/7 Run, Dependable |
1st 42k rpm spindle in 1992! Long life, extreme precision |
| Pallet Changer System | Unattended 2nd & 3rd Shift | Industry leading affordability - Fast ROI |
| Heidenhain CNC | Best in Class for 5-axis, Contouring, Fully Loaded |
All models, no need for additional options, Utilizes Mikron Smart Modules |
| Polymergranite | Thermalstability, Vibration Dampening, Heavy |
Handles high acceleration - Better surface finish, Better accuracy control |
| High Acceleration | Key to Fast Cycle Times & Long Tool Life | $$$ Manage demands of customer |
| Symmetrical Design | Accuracy, Ergonomics | Stability throughout the day |
| Automation in Mind | Designed - Not an after thought | Ergonomic - No operator obstruction |
