C Series
Economical protected plate and sheet fiber laser with large working areas and broad power choices.
Bodor Laser
Fiber Laser Plate & Sheet Cutting
Highlights:
- •Fiber Laser Sheet & Tube Cutting
- •1kW—40kW—Highest Power Fiber Laser—Cut up to 8" thick
- •European quality
- •Integrated Automation Solutions
- •BEST Pricing in the Industry
Why Do We Need A 10kW+ Fiber Laser?
For laser cutting machines, the higher the power, the faster the speed and the higher the efficiency. It can help shorten delivery time resulting in higher profit margins for the company.
In stainless steel cutting, the processing speed of 12,000W laser machine is 3.4 times that of 6kW.
Bodor C Series
Economical Fiber Laser Plate Cutting Machine
- Economical Sheet Fiber Laser Cutting Machine with Full ProtectionMaximum cutting area reaches up to 12000mm*2500mm, suitable for a variety of cutting options.
- Active Anti-collision FunctionEffectively reduce the damage rate of laser heads, help you save maintenance cost.
- One-click ProcessingAll functions of the system are distributed logically and orderly to achieve fully automatic mass production.
- No Quiver when Cutting Thin SheetC Series is capable of cutting edges of thin sheets and ensures no quivering marks.
- Stretching Aluminum CrossbeamRigidity increases by 60% | Weight goes down by 20% | Equipment running speed increases by 50%
- Welded Bed with Tenon-and-mortise JointEach frame of bed is welded after mortise-and-tenon joint to achieve better stability and firmness.
| Model | C12 | C8 | C6 | C4 | C3 |
|---|---|---|---|---|---|
| Working Area | 12500*2600mm | 8000*2500mm | 6100*2500mm | 4000*2000mm | 3048*1524mm |
| Laser Power | 40kW/30kW/22kW/20kW/12kW/6kW/3kW | 40kW/30kW/22kW/20kW/12kW/6kW/3kW/2kW/1.5kW | |||
| Positioning accuracy | ±0.05mm | ||||
| Repositioning accuracy | ±0.03mm | ||||
| Max. linkage speed | 110m/min | ||||
| Max. acceleration | 1.5G | ||||

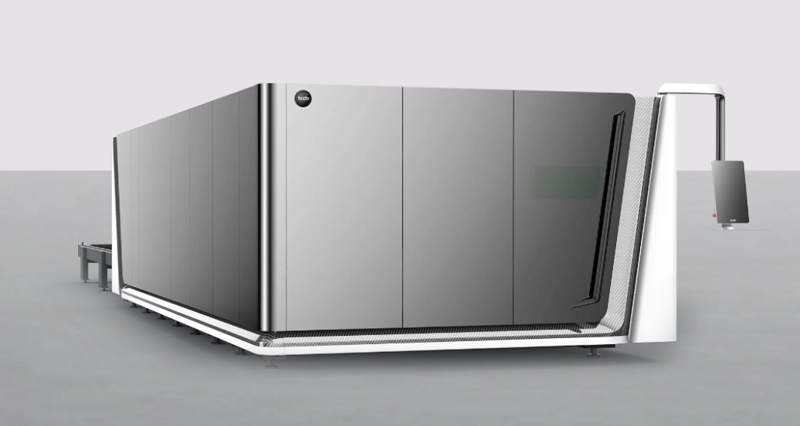

Bodor P Series
High-performance fiber laser plate cutting machine
- All-round ModelEquipped with automatic functions of nozzle changing and one-click processing, P series is competent for all cutting tasks.
- One-click ProcessingAll functions of the system are distributed logically and orderly to achieve fully automatic mass production.
- Automatic nozzle changerThe machine changes its nozzle within 35s at the fastest speed - this saves 50% of time costs.
- Cast Iron BedFeaturing good shock absorption, Cast Iron Bed keeps its shape all the way with the optimal mechanical property.
- Active Anti-collision FunctionEffectively reduce the damage rate of laser heads, help you save maintenance cost.
- Expert High Speed Cutting Database
| Model | P3 | P4 | P6 Lean | P6 | P8 |
|---|---|---|---|---|---|
| Working Area | 3048*1524mm | 4000*2000mm | 6100*2000mm | 6100*2500mm | 8100*2500mm |
| Laser Power | 40000w/30000w/22000w/20000w/12000w/6000w/3000w/2000w/1500w | ||||
| X/Y-axis positioning accuracy | 0.03mm | 0.05mm | |||
| X/Y-axis repositioning accuracy | 0.02mm | 0.03mm | |||
| X/Y-axis Max. linkage acceleration | 2.5G | 2G | |||
| X/Y-axis Max. linkage speed | 169m/min | ||||
Bodor i Series
Compact design sheet fiber laser metal cutting machine
Smart, Ultra-Precise- A Compact Design with Complete ProtectionSmall occupied space balances complete protection and higher safety.
- Active Anti-collision FunctionEffectively reduce the damage rate of laser heads, help you save maintenance cost.
- Cast Iron BedFeaturing good shock absorption, Cast Iron Bed keeps its shape all the way with the optimal mechanical property.
- High Speed Cutting Database
- No Quiver when Cutting Thin Sheeti Series are capable of cutting edges of thin sheet and ensure no quivering marks.
- Bodor Pro 2.0CAD and CAM are embedded perfectly in Bodor Pro 2.0 to help you edit graphics. No more extra editing software required.
| Model | i5 | i7 |
|---|---|---|
| Operating Area | 1000*1500mm | 3048*1524mm |
| Machine overall dimensions | 3630×2200×1940mm | 4960×2280×2200mm |
| Laser Output Power | 3000w/2000w/1500w | 3000w/2000w/1500w |
| X/Y-axis positioning accuracy | ±0.05mm | ±0.05mm |
| X/Y-axis repositioning accuracy | ±0.03mm | ±0.03mm |
| X/Y-axis Max. linkage speed | 60m/min | 100m/min |
Bodor i3 Series
Compact design, high-speed sheet fiber laser metal cutting machine
Smart, Ultra-Precise- A Compact Design with Complete ProtectionSmall occupied space balances complete protection and higher safety.
- Active Anti-collision FunctionEffectively reduce the damage rate of laser heads, help you save maintenance cost.
- Linear MotorLinear Motor has the advantage of contactless transmission, low inertia ratio, and high speed dynamic response.
- Marble Bed100 times more vibration damping coefficient than steel! Marble workbench keeps the equipment stable.
- High Speed Cutting Database
- No Quiver when Cutting Thin Sheeti Series are capable of cutting edges of thin sheet and ensure no quivering marks.
- Bodor Pro 2.0CAD and CAM are embedded perfectly in Bodor Pro 2.0 to help you edit graphics. No more extra editing software required.
| Model | i3Linear |
|---|---|
| Working Area | 600*600mm |
| Laser Power | 3000w/2000w/1500w |
| X/Y-axis positioning accuracy | 0.01mm |
| X/Y-axis repositioning accuracy | 0.004mm |
| X/Y-axis Max. linkage speed | 80m/min |

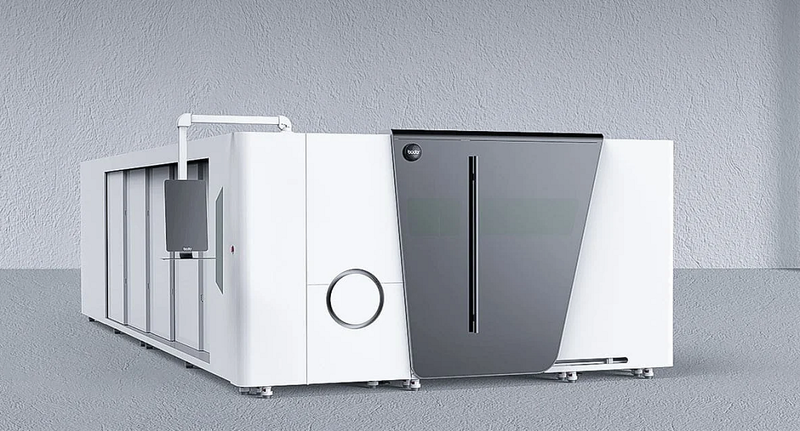

Bodor C3T
Combination Plate/Tube Fiber Laser Cutting Machines
Best performance, general use enclosed plate and tube laser cutting machine- Double Fast Exchange TablesFast exchange of two tables greatly improves efficiency. Chain-drive system has better rigidity and higher accuracy, saving feeding time.
- Tenon-and-mortise Welded BedUse Tenon-and-mortise structure to provide stronger bearing capacity. Solder joint fixing and structural bearing ensure long-standing operation stability. Welded structure improves shock absorption effect, lowering deviation caused by shock, and offering more accurate cutting.
- Double Automatic Centering Electric ChucksDouble electric chucks with automatic centering function are easy to operate and require little maintenance. Brand new motor gives accurate control. Modular chuck components are independently developed and can be quickly replaced.
- Active Obstacle AvoidanceIntelligent Anti-collision - 360° radar system can detect any obstacles in advance and Z axis high-speed motion will be activated to immediately avoid obstacles, avoiding collisions. Higher Efficiency, Lower Cost - This function Lowers the damage rate of laser head, and accordingly reduces maintenance cost, prolonging service life of the machine.
- All-around Protective CoveringFull protection and encirclement | Isolation of laser radiation pollution | Automatic soot collection | Ensure the operation area is clean
- Automatic focusing function of laser headBy setting perforation focal length and cutting focal length respectively, the cutting is more accurate. Suitable for multiple focal lengths, and focal position will be automatically adjusted based on thickness of different sheets.
- Extruded Aluminum BeamAviation-level material with enhanced rigidity, greatly reduces beam deformation during high-speed operation, and improves high-speed directional sensitivity and processing efficiency.
- BodorCloud - IoT Cloud Platform for Laser CNC MachinesApply for After-sale Service on Bodor Cloud Platform | Digital Management of Equipment, Storage of Traceable Data | Real-time Equipment Monitoring, Automatic Malfunction Alert | Access through Multiple Devices, All-around Information Display
+ Discover More Download Brochure
| Model | C3T |
|---|---|
| Working Area | 3048mm*1524mm |
| Laser Output Power | 6000w/3000w/2000w/1500w |
| Positioning accuracy | ±0.05mm |
| Repositioning accuracy | ±0.03mm |
| Max. linkage speed | 100m/min |
| Max. acceleration | 1G |
Bodor Fiber Laser Plate and Sheet Cutting Machines
Bodor plate and sheet fiber lasers give manufacturers options for economical cutting, high-performance production, compact floor space, ultra-precise compact work, and combination plate/tube capability. Peak helps compare machine family, work area, power, accuracy, speed, and automation needs.
Match plate laser power to production goals
The right plate laser depends on material type, thickness range, edge quality expectations, throughput, assist gas strategy, automation, and available floor space.
Machine and product options
P Series
High-performance plate cutting platform with automatic functions, nozzle changing, cast iron bed, and high-speed database.
i Series
Compact protected sheet fiber laser for smaller floor space and lighter sheet work.
i3 Series
Compact high-speed sheet laser with linear motor and marble bed for precise compact cutting.
C3T
Combination plate/tube platform for shops that need both flat sheet and tube capability.
Common buyer questions
Which Bodor plate laser should I compare first?
Start with working area, material thickness, power level, production speed, automation, and floor space.
Can Peak help quote Bodor plate lasers in Michigan?
Yes. Peak helps Michigan manufacturers compare Bodor plate and sheet laser options and request the right quote path.
Need help choosing the right machine? Call Peak Machine Sales at (248) 380-0871 or request a quote.
