Breton Machine Tools

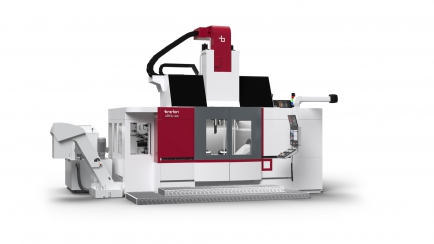

5-Axis Vertical Machining Center with Trunnion Table For Milling and Turning with High Power and High Precision

A robust and stable Metalquartz base frame and a

dedicated boring bar

for a full range of operations on a single machining center. Ideal for

roughing, semi-finishing and finishing operations on superalloys, steel, lightweight alloy, or composites.

Travels (X,Y,Z):

ULTRIX 900

X: 35.4 in.

Y: 35.4 in.

Z: 23.6 in.

ULTRIX 1200

X: 45.3 in.

Y: 39.4 in.

Z: 27.6 in.

ULTRIX 1400

X: 67 in.

Y: 67 in.

Z: 39.4 in.

Superior force, speed, and precision

The major benefit is having multiple production capabilities in a single solution: roughing, semi-finishing, finishing, measurement, inspection and quality control of surfaces. Meticulous design and structural optimization assisted by a digital twin made it possible to develop a machine that combines force and robustness for roughing phases with speed and precision for superfinishing operations.

Dedicated Boring Bar

Breton Ultrix has an exclusive solution composed of a vertical boring bar rigidly secured to the vertical RAM structure. The bar is position-controlled and has powerful hydraulic brakes so it can be locked at any point of its vertical stroke. The ease with which the independent boring bar penetrates the workpiece makes it possible to drastically reduce the number of tools required and the length of the tool holder tapers. This means that turning operations can be performed with higher power and with a significant reduction of vibration.

Metalquartz monobloc

Metalquartz is a special Breton patented polymer matrix quartz compound that guarantees high mechanical strength, vibration damping, and a thermal expansion coefficient similar to that of steel. Thanks to this technology, the base frame of the various versions of Ultrix guarantees reduction of vibrations and consequently greater precision of processed parts.

Advanced connectivity and technology

Breton Ultrix was developed by exploiting the capabilities of the Digital Twin which, thanks to simulations conducted in a virtual environment, allows targeted optimization of design choices with consequent gains in performance. Ultrix is available with the very latest Heidenhain and Siemens controls. The machine is fully connectorised for rapid programming and maintenance. This solution allows integration with Industry 4.0 software to analyze operating statistics, optimize operations, and for predictive maintenance.

Designed around your needs

Ultrix is available in three different sizes and configurable to suit specific application sectors. This means Ultrix can offer optimal solutions of wet or dry machining of special composites, aluminium, steel, and superalloys. Ultrix is available with a wide range of accessories for each application type, including motor spindles, milling/turning tables, various automations for workpiece loading/unloading, and tool stores with up to 300 cells. In addition, Ultrix can be integrated with additional innovative technologies such as power skiving for gear machining operations.

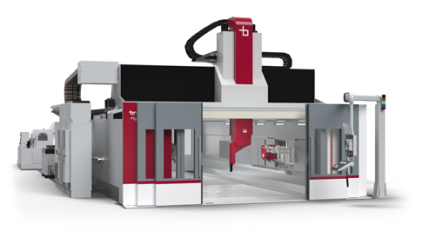

High power & precision 5-axis modular vertical gantry milling-turning center

Breton Flymill is the machining center designed for companies operating with very large workpieces and, especially, for machining of tough materials that require

high power and torque

. With

Z axis strokes up to 1,500 mm

, cross strokes up to 4,000 mm and longitudinal strokes up to 30,000 mm, Flymill is the machining center for tough materials with the highest operating volume in the Breton range. This machine is distinguished by its

ability to combine milling and turning in a single set-up

, exploiting the potential of the

turning table

and the

automatic heads store

to automatically switch from the powerful milling head to the boring bar head during the machining process.

Travels (X,Y,Z):

FLYMILL 1000 K20/30/45/60/80

X: 78.7-118 - 177 - 236.2 - 315 in.

Y: 98.4 - 157.5 in

Z:39.4 in.

FLYMILL 1300 K20/30/45/60/80

X: 78.7-118 - 177 - 236.2 - 315 in.

Y: 98.4 - 157.5 in

Z: 51.1 in.

FLYMILL 1600 K20/30/45/60/80

X: 118 - 177 - 236.2 - 315 in.

Y: 157.5 in.

Z: 63 in.

FLYMILL 2000 K45/60/80

X: 177 - 236.2 - 315 in.

Y: 137.8 in.

Z: 78.7 in.

Power and torque meet the maximum precision

The major benefit is having multiple production capabilities in a single solution: roughing, semi-finishing, finishing, measurement, inspection and quality control of surfaces. Meticulous design and structural optimisation assisted by a digital twin made it possible to develop a machine that combines force and robustness for roughing phases with speed and precision for superfinishing operations.

Multitasking to combine milling and turning

Breton Flymill E1 in the MT (Mill Turn) version can also operate as a vertical turning centre. All these features are possible thanks to the use of a quick heads coupling/release system (up to 600 Nm in 3 axes), which allows fast and automatic changeover of the A milling axis, replacing it with a vertical turning head. This solution, combined with the high performance (torque and hydrostatic) turning tables manufactured by Breton, guarantees superior milling and turning capabilities in a single versatile solution.

Installation and operating costs reduced to the minimum

Using an advanced lubrication system not only results in the elimination of dirt, workpiece staining, and harmful mists, it also slashes maintenance and running costs. In turn, the Rexroth CytroPac hydraulic power unit helps reduce energy consumption by means of variable pressure management strategies. The Thermal Shield system applied to the Flymill thermo-symmetrical structure guarantees optimal control of thermal expansion without resorting to costly cooling systems. An efficient chip evacuation system and the use of stainless steel claddings mean the work area is always clean and reduce the need for human intervention.

Advanced connectivity and technology

Breton FLYMILL was developed by exploiting the capabilities of the

digital twin

which, thanks to simulations conducted in a virtual environment, allows targeted optimization of design choices with consequent gains in performance. Breton FLYMILL is available with the very latest Heidenhain and Siemens controls. The machine is fully connectorised for rapid programming and maintenance. This solution allows integration with

Industry 4.0 software

to analyse operating statistics, optimise operations, and for predictive maintenance.

Designed around your needs

Breton Flymill is available in various configurations designed to fulfil the needs of specific sectors, especially in applications requiring high power/torque for tough materials. This means we can offer a bespoke solution, whether the customer is working with aluminium, steel or superalloys. Flymill can be equipped with a large number of accessories for all application types, such as heads/motor spindles and various automation types for workpiece loading/unloading operations. The machine can also be integrated with additional innovative solutions, including ultrasonic cutting for aeronautical materials (honeycomb panels), ultrasonic thickness checking systems, automated countersinking systems, and far more besides.

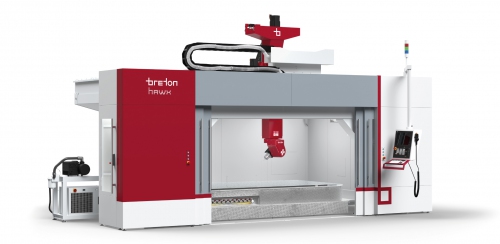

5-axis modular vertical gantry machining center for plastic, resins, and composites

The right combination of robustness and stability makes the machine ideal for

milling and trimming operations at high speed on parts with complex 3D shapes

made of

lightweight alloy, resin, or composite materials.

Travels (X,Y,Z):

X: 157 - 236 in.

Y: 75 in.

Z: 51 in.

Robustness and stability over time

The monolithic self-supporting structure and the bridge-RAM assembly with its box-in-box architecture have been designed to raise the level of accuracy and repeatability over time while maintaining high acceleration and speed. The result is the creation of a new, clearly superior benchmark in machining centers of this category. Hornet, the head developed by Breton for this machining center, is extremely rigid to guarantee greater accuracy on the most stress-sensitive part, even in the most demanding machining operations.

Unbeatable footprint ratio

Up to 29% more working area for the same external dimensions. Both versions of the HAWX are built with one-piece structures, calculated using FEM methodology to optimize structural strength with respect to weight and footprint. Thus, thanks to its ultra-compact design compared to its main competitors, Hawx guarantees greater workable volumes for the same area occupied. Essential to this was the integration of the mechanical parts and options in dedicated spaces within the supporting structure.

Perfect for both wet and dry machining operations

Hawx is designed to be able to work both wet and dry to ensure proper handling of dust, chips and liquids generated during machining. The axis guides are well protected by bellows, and the main drive components are pressurized so as not to be contaminated. The overhead bellows prevent dust from entering the working area and reaching the guides. The Z-axis ball screw is closed and well protected. In addition to the labyrinth, the head is also equipped with a V-ring scraper that provides complete protection when machining aggressive, abrasive materials or with coolant. The tool store is outside the working area to keep the tools holder protected.

Top-class security

Breton Hawx has a double safety system as standard, which also includes an emergency brake on the Z-axis to prevent the axis from falling. All servos and pneumatic actuators are controlled by valves and extra safety contacts. The integration of top-class components allows operations to be performed with open guards, such as tool verification and workpiece checks with the spindle moving at low rpm, in complete safety. The ECO collision avoidance system prevents accidental collisions between components, not only in automatic cycles but also during JOG movements.

Energy efficiency and reduced running costs

The goal is to maximise ROI, taking into account the entire life cycle of the machine. The use of IO-Link low-consumption modular system allows for simple and quick replacement or installation of additional sensors, thus reducing service time and costs. Maintenance costs are reduced by using the VCS Rotary package, which automatically monitors and calibrates the machine. Protection of servo drives by means of bellows and pressurization increases reliability and extends the working life of the components, while for wet applications, the use of self-cleaning or consumable-free filter systems significantly reduces downtime and additional costs for filter replacement.

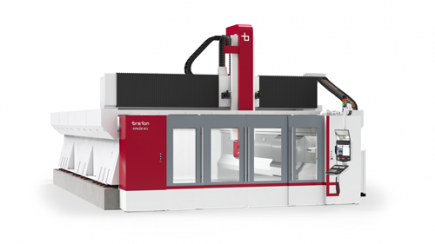

High precision & high dynamic 5-axis modular vertical gantry machining center for composites, aluminum, and steel

The wide range of structural combinations available makes it possible to create a bespoke configuration based on the required production volumes. The technical features make the machine ideal for

high-speed machining of parts with complex 3D shapes in lightweight alloy, resin, or composite materials.

Travels (X,Y,Z):

Eagle 1000

K 20/30/45/60/80/105/120*

X: 79 - 118 - 177 - 236 - 315 - 413 - 472 in.

Y: 98 - 115 in.

Z: 39 in.

Eagle 1500

K 20/30/45/60/80/105/120*

X: 79 - 118 - 177 - 236 - 315 - 413 - 472 in.

Y: 98 - 115 in.

Z: 59 in.

Eagle 2000

K 20/30/45/60/80/105/120*

X: 79 - 118 - 177 - 236 - 315 - 413 - 472 in.

Y: 98 - 115 in.

Z: 79 in.

Eagle 2500

K 20/30/45/60/80/105/120*

X: 79 - 118 - 177 - 236 - 315 - 413 - 472 in.

Y: 98 - 115 in.

Z: 98 in.

*X-stroke available every 2 meters up to 30 meters

Total application flexibility

This machining center meets a large number of market demands in terms of dynamics, precision, and machinable volumes. The pronounced modularity in terms of strokes, with Z axis from 1,000 mm to 2,500 mm, the several combinations of heads and motor spindles, together with the many accessory packages provided, allow Eagle to handle a wide range of machining processes in all sectors. Breton Eagle can be equipped with dedicated technologies for specific sectors and materials such as ultrasonic cutting for composite materials, Accuthick for milling with automatic thickness monitoring and Accusink for riveting operations.

Significant dimensional modularity

Thanks to careful design, all versions of Eagle offer optimal performance that remains constant through time. Elevated modularity makes it possible to virtually customize each machine to match customer requirements. Vertical strokes are available from 1 meter up to 2.5 meters, with cross strokes from 2.5 to 5 meters. The guides support system allows longitudinal travel on the columns of 12 meters and more, making it possible to meet specific customer requirements.

Perfect for both wet and dry machining operations

Eagle is designed for both wet and dry machining. A series of safety systems was included to protect the most sensitive parts. The axis guides are securely protected by bellows and the main drive train components are pressurised to prevent the ingress of contaminants. In addition, the top bellows keep machining dust inside the work area and prevent it from reaching the guides. Apart from a labyrinth seal, the head has a V-ring wiper seal for complete protection when working with aggressive and abrasive materials and during operations with coolant. The tool store, located outside the work area to protect the tapers, enters only for the time strictly necessary for each tool change.

Temperature variations are under control

Eagle's thermo-symmetrical design makes it possible to reduce structural deformations and allow them to be easily compensated via software. The most sensitive points and those that generate the most heat, such as the head, the A axis and the motor spindle, are cooled using a dedicated chiller in order to reduce heat transmission to other parts of the machine.

Two different heads to cover all requirements

For compact size and versatility, the perfect choice is the Hornet orthogonal head, built for torsional stiffness and accuracy while simultaneously extending the machinable area thanks to its unique design. With maximum power of 18 Nm and speed of 24000 rpm, Hornet is ideal for machining resins, composites, and aluminium. Customers can also opt for the Ghibli fork head when more spindle power and accuracy are needed. Capable of delivering 62 Nm at 28000 rpm, this head provides high removal performance on resins, composites, and lightweight alloys.

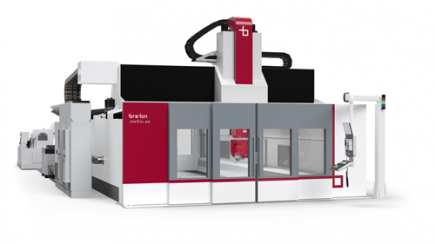

High precision & high dynamic 5-axis modular vertical gantry machining center for special composites, aluminum, steel, and super alloy

The development of this machining center was based on careful technical choices that combine thrust and robustness with dynamics and precision for perfect performance in

hi-feed roughing, semi-finishing and finishing of medium-large workpieces in steel, lightweight alloys, and special composites.

Matrix E3

Travels (X,Y,Z):

X-Axis range: 118 - 1181 in.

Y

-Axis range

: 118 / 157 in.

Z

-Axis range

: 51 / 59 in.

Superior force, speed, and precision

The major benefit is having

multiple production capabilities in a single solution

: roughing, semi-finishing, finishing, measurement, inspection and quality control of surfaces. Meticulous design and structural optimization assisted by a digital twin made it possible to develop a machining center that combines force and robustness for roughing phases with speed and precision for superfinishing operations. The

Dual Drive motors

on the 3 linear axes, together with precisely engineered rack and pinion systems with linear scales and encoders, provide the perfect solution for

high speeds, high thrust force, and extreme precision.

Installation and operating costs reduced to the minimum

Using an

advanced lubrication system

not only results in the elimination of dirt, workpiece staining, and harmful mists, it also slashes maintenance and running costs. In turn, the

Rexroth CytroPac

hydraulic power unit helps

reduce energy consumption

by means of variable pressure management strategies. The

Thermal Shield

system applied to the Matrix E2 thermo-symmetrical structure guarantees optimal control of thermal expansion without resorting to costly cooling systems. An efficient chip evacuation system and the use of stainless steel claddings mean the

work area is always clean

and reduce the need for human intervention.

Maximum ergonomics and safety

The work table is easily accessible and the top bellows assure fast and safe workpiece

loading-unloading operations

with overhead cranes. The work area is fully enclosed to prevent the egress of chips, dust or potentially hazardous fumes for the operator. Excellent visibility of machining operations is assured by large shatterproof and scratch resistant windows plus internal cameras linked to the control panel.

Advanced connectivity and technology

Matrix E2 was developed by exploiting the capabilities of the

digital twin

which, thanks to simulations conducted in a virtual environment, allows targeted optimization of design choices with consequent gains in performance. Matrix E2 is available with the very latest Heidenhain and Siemens controls. The machine is fully connectorised for rapid programming and maintenance. This solution allows integration with

Industry 4.0 software

to analyse operating statistics, optimise operations, and for predictive maintenance.

Designed around your needs

Matrix E2 is available in two configurations, X stroke of 2.5 or 4 meters, chosen to assure compatibility with the workpieces typical of applications in sectors such as mould & die, aerospace, and similar. The machine can be equipped with dedicated accessories depending on whether it is to be used for

wet or dry machining

of special composites, aluminum, steel, or superalloys. Matrix E2 is available with a

large number of accessories for all application types

such as heads/motor spindles and various automation types for workpiece loading/unloading operations. Matrix E2 can also be integrated with additional

innovative solutions

, including ultrasonic cutting for aeronautical materials (honeycomb panels), ultrasonic thickness checking systems, automated countersinking systems, and far more besides.

High precision & high dynamic 5-axis modular vertical gantry machining center for special composites, aluminum, steel, and super alloy

The development of this machining center was based on careful technical choices that combine thrust and robustness with dynamics and precision for perfect performance in

hi-feed roughing, semi-finishing and finishing of medium-large workpieces in steel, lightweight alloys, and special composites.

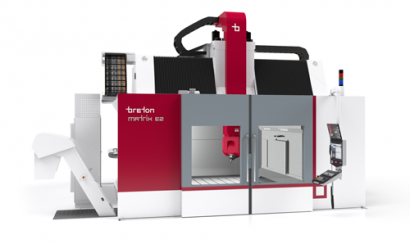

Matrix E2 1100 K25

Travels (X,Y,Z): 98.43" x 98.43" x 43.31"

Matrix E2 1100 K40

Travels (X,Y,Z): 157.5" x 98.43" x 43.31"

Superior force, speed, and precision

The major benefit is having

multiple production capabilities in a single solution

: roughing, semi-finishing, finishing, measurement, inspection and quality control of surfaces. Meticulous design and structural optimization assisted by a digital twin made it possible to develop a machining center that combines force and robustness for roughing phases with speed and precision for superfinishing operations. The

Dual Drive motors

on the 3 linear axes, together with precisely engineered rack and pinion systems with linear scales and encoders, provide the perfect solution for

high speeds, high thrust force, and extreme precision.

Installation and operating costs reduced to the minimum

Using an

advanced lubrication system

not only results in the elimination of dirt, workpiece staining, and harmful mists, it also slashes maintenance and running costs. In turn, the

Rexroth CytroPac

hydraulic power unit helps

reduce energy consumption

by means of variable pressure management strategies. The

Thermal Shield

system applied to the Matrix E2 thermo-symmetrical structure guarantees optimal control of thermal expansion without resorting to costly cooling systems. An efficient chip evacuation system and the use of stainless steel claddings mean the

work area is always clean

and reduce the need for human intervention.

Maximum ergonomics and safety

The work table is easily accessible and the top bellows assure fast and safe workpiece

loading-unloading operations

with overhead cranes. The work area is fully enclosed to prevent the egress of chips, dust or potentially hazardous fumes for the operator. Excellent visibility of machining operations is assured by large shatterproof and scratch resistant windows plus internal cameras linked to the control panel.

Advanced connectivity and technology

Matrix E2 was developed by exploiting the capabilities of the

digital twin

which, thanks to simulations conducted in a virtual environment, allows targeted optimization of design choices with consequent gains in performance. Matrix E2 is available with the very latest Heidenhain and Siemens controls. The machine is fully connectorised for rapid programming and maintenance. This solution allows integration with

Industry 4.0 software

to analyse operating statistics, optimise operations, and for predictive maintenance.

Designed around your needs

Matrix E2 is available in two configurations, X stroke of 2.5 or 4 meters, chosen to assure compatibility with the workpieces typical of applications in sectors such as mould & die, aerospace, and similar. The machine can be equipped with dedicated accessories depending on whether it is to be used for

wet or dry machining

of special composites, aluminum, steel, or superalloys. Matrix E2 is available with a

large number of accessories for all application types

such as heads/motor spindles and various automation types for workpiece loading/unloading operations. Matrix E2 can also be integrated with additional

innovative solutions

, including ultrasonic cutting for aeronautical materials (honeycomb panels), ultrasonic thickness checking systems, automated countersinking systems, and far more besides.

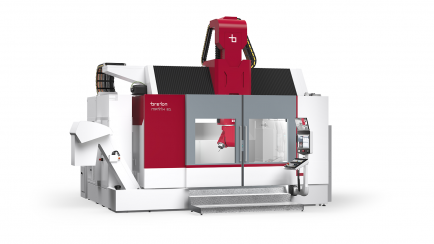

High precision & high dynamic 5-axis monoblock vertical gantry machining center for special composites, aluminum, steel and super alloy

Available in various configurations to provide a perfect answer to the needs of specific applications, including molds and dies, aero structures, and composite materials machining. This machine is ideal for hi-feed roughing, semi-finishing and finishing of medium-size workpieces in steel, lightweight alloy or special composites.

Compact size

Matrix E1 features an excellent ratio between machine dimensions and axis strokes. This makes it possible to work on large size workpieces in the same footprint, compared to others available on the market. The cross stroke (Y=2,500 mm) and the longitudinal stroke (X=2,000 mm), allow a reduction of the machine depth, thus enabling the operator to carry out check operations in optimal visibility conditions.

Superior force, speed, and precision

A fully thermo-symmetrical structure equipped with the Thermal Shield system, reduces structural deformations without resorting to costly cooling systems. The use of direct drive motors for axis movements eliminates backlash and vibration caused by drive belts. Matrix E1's heads feature large bearings that provide the stiffness needed for the heaviest duty machining. The use of high-resolution encoders and liquid-cooled axes guarantee high accuracy.

Versatile application

Breton Matrix E1 allows high-speed roughing operations, with exceptional performance even in the semi-finishing and finishing phases. The availability of a wide range of electrospindles, which can be installed on different heads, allows Matrix E1 to work efficiently on different materials such as hardened steel, aluminum and composite. The wide range of available accessories allows a flexible configuration to meet the needs of different sectors, such as Aerospace and Mold & Die.

Reduced installation times and costs

A monobloc structure of reduced size and weight simplifies the shipping process. Matrix E1 is delivered already assembled, greatly reducing installation time and costs. Matrix E1 monobloc structure means simple flat foundations are sufficient. Careful design of the anchorage points minimizes the amount of cement and chemical anchors required to fix Matrix E1.

Operating costs reduced by half

The use of an advanced lubrication system eliminates dirt, stains on parts, hazardous vapours and reduces maintenance and operating costs. The Rexroth CytroPac hydraulic control unit, in turn, reduces consumption through variable pressure management. The use of the Thermal Shield system, applied to the thermo-symmetrical structure of Matrix E1, guarantees optimal control of thermal expansions without using expensive cooling systems. An efficient chip evacuation system and the use of stainless steel covers ensure a clean work area at all times and reduce operator intervention.
