GENESI
Large Scale Thermoplastic Additive Manufacturing
Genesi is Breton's 3D Printer for Large-Scale Production of Thermoplastic Materials
Starting from the analysis of extrusion processes, Breton has developed a wide range of machining centers to exploit the potential of 'Large Scale Additive Manufacturing' on thermoplastic materials.
+ Project Arrow - Canada's first Zero Emissions Concept Vehicle - Fully 3D Printed Vehicle Chassis
+ Breton Genesi at FormNext Video
GENESI E2
| Spec | GENESI E2 k40 | GENESI E2 k50 | GENESI E2 + M |
|---|---|---|---|
| Version | pure additive | pure additive | additive + milling |
| X-Axis Stroke | 157.5 in. | 236 in. | 185 in. |
| Y-Axis Stroke | 74.8 in. | 74.8 in. | 74.8 in. |
| Z-Axis Stroke | 51.2 in. | 51.2 in. | 51.2 in. |
| Extrusion Capacity (max.) | 154 lbs. | 154 lbs. | 154 lbs. |
| Milling Spindle | — | — | 18/24,000 rpm |
| Milling Tool Taper | — | — | HSK-A63 |
| Length | 126 in. | 126 in. | 126 in. |
| Width | 279 in. | 396.45 in. | 396.45 in. |
| Height | 223 in. | 223 in. | 223 in. |

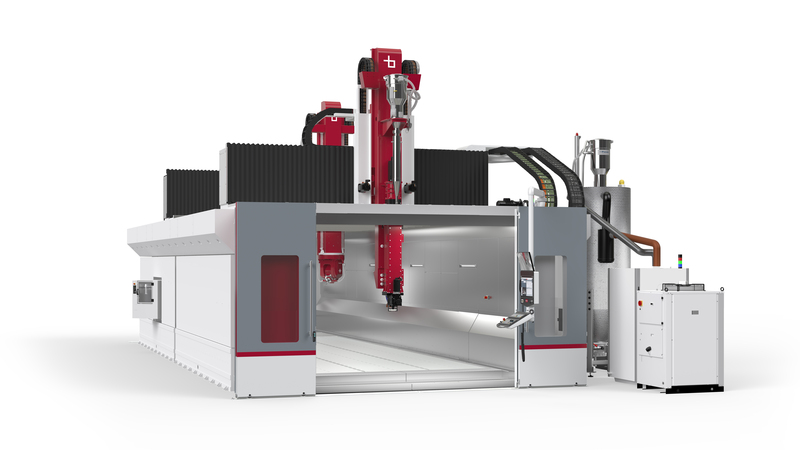

GENESI E3
| Spec | GENESI E3 | GENESI E3 + M |
|---|---|---|
| Version | pure additive | additive + milling |
| X-Axis Stroke | 157.5 - 1181 in. | 157.5 - 1181 in. |
| Y-Axis Stroke | 118 - 196.85 in. | 118 - 196.85 in. |
| Z-Axis Stroke | 78.75 - 98.42 in. | 78.75 - 98.42 in. |
| Extrusion Capacity (max.) | 440 lbs. | 440 lbs. |
| Milling Spindle | — | 62/24,000 rpm |
| Milling Tool Taper | — | HSK-A63 |
MACHINE LEARNING AND ARTIFICIAL INTELLIGENCE
It uses machine learning algorithms and advanced artificial intelligence systems to achieve high-level mechanical and aesthetic properties innovating and evolving 3D printing.
GIANT IN DIMENSIONS
"Giant" in dimensions, Genesi is one of the world's largest 3D printers for prototyping (3 metres in height, up to 5 metres in width and length on request) with a deposition capacity up to 200 kg per hour of reinforced thermoplastic materials.

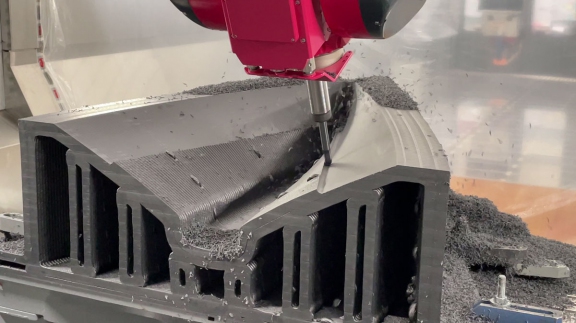

COMBINATION OF ADDITIVE AND SUBTRACTIVE SYSTEMS
Genesi can operate either in a purely additive version or in combination with a subtractive system. This second solution overcomes the limits of the pure additive method, which allows the production of near net shape parts that are close to the final shape but not completely finished.
