PV Series Double Column Bridge Mill Main Characteristics
- High Accuracy and High Rigidity
- 25 hp, 6,000 rpm Japanese made Gear-head Spindle
- 34 hp, 10,000 rpm Built-in Motor Spindle (Optional)
- Single unit (monobloc) bridge
- Largest 32-tools ATC system as standard
- Dual built-in casting chip screw removal system with chip conveyor
- Roller type linear guideways on X-axes and Y-axes
Base Structure
- Extra heavy load recirculating roller linear guideway on X-axis and Y-axis
- Fast rapid feedrate on X-axis and Y-axis are 20 m/min, and Z-axis is 16 m/min
- Automatic lubrication to the sliding points
- Final laser inspection and ball bar testing ensure repeatability and positioning accuracy
- Linear scales for high precision feedback system (Optional)
Environmental Design Concept
- Automatic lubrication unit with intelligent pressure failure detection function provides reliable lubricator supply for cost saving
- Big coolant tank with high pressure pump provide the most efficient coolant circulation
- All axis lubrication oil is kept away from the coolant which can extend coolant oil life for environmental protection

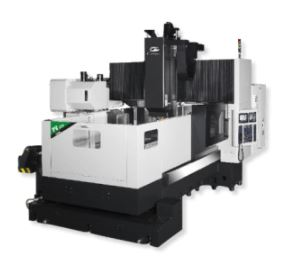

PV-2216
Double Column Bridge Mill
 |

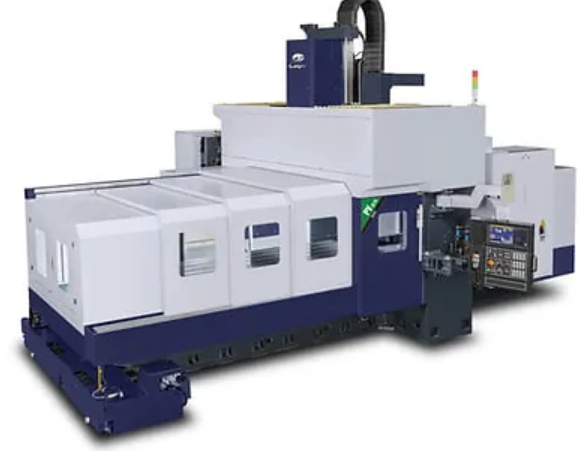

PV-3216
Double Column Bridge Mill
 |

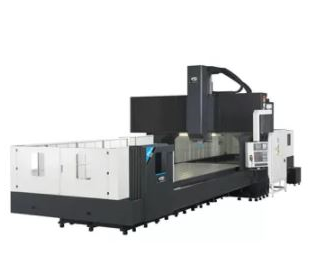

PV-3221
Double Column Bridge Mill
 |

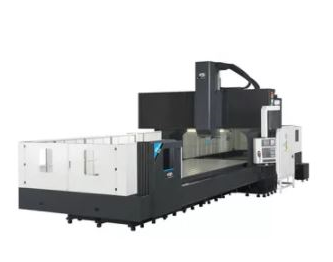

PV-4216
Double Column Bridge Mill
 |

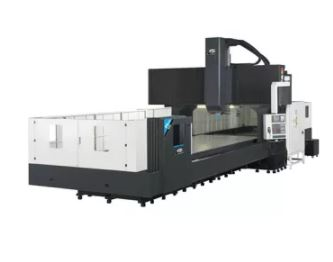

PV-4221
Double Column Bridge Mill
 |

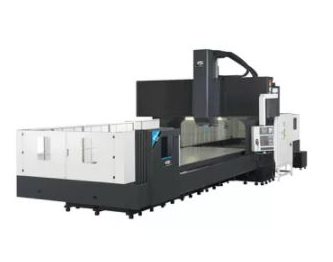

PV-5221
Double Column Bridge Mill
 |
PV-5226
Double Column Bridge Mill
 |
PV-5231
Double Column Bridge Mill
 |
