CPV-1050B
Ultra rigid box way for heavy cutting and long term accuracy
 |
The CPV Box Way Series of Vertical Machining Centers is designed for heavy cutting, long-term high accuracy, and superior surface finishes. Classic manufacturing methods and ultra rigid construction are combined with advanced technological features to provide exceptional value. Constructed with high quality Meehanite cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.
- Box ways on all 3 axes greatly upgrades stability and dampening capability.
- Automatic lubrication unit with intelligent pressure failure detection function provides reliable supply for saving cost and for environmental protection.
- Oil-coolant separation design which meets the environment protection requirements allows centralized collection for all way oil.
Travels: 41.3" x 20.8" x 30.7"
| + Request Quote |
| + Discover More |
CPV-1100B
Ultra rigid box way for heavy cutting and long term accuracy
 |
MACHINE FEATURES
- Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.
- Box ways on all 3 axes greatly upgrades stability and dampening capability.
- Automatic lubrication unit with intelligent pressure failure detection function provides reliable supply for saving cost and for environmental protection.
- Oil-coolant separation design which meets the environment protection requirements allows centralized collection for all way oil.
Travels: 43.3" x 24.4" x 23.6"
| + Request Quote |
| + Discover More |
CPV-1400B 50 TAPER
Ultra rigid box way for heavy cutting and long term accuracy
 |
- Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.
- Box ways on all 3 axes greatly upgrades stability and dampening capability.
- Automatic lubrication unit with intelligent pressure failure detection function provides reliable supply for saving cost and for environmental protection.
- Oil-coolant separation design which meets the environment protection requirements allows centralized collection for all way oil.
Travels: 55.1" x 29.5" x 27.5"
| + Request Quote |
| + Discover More |
CPV-1600B 50 TAPER
Ultra rigid box way for heavy cutting and long term accuracy
 |
MACHINE FEATURES
- Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.
- Box ways on all 3 axes greatly upgrades stability and dampening capability.
- Automatic lubrication unit with intelligent pressure failure detection function provides reliable supply for saving cost and for environmental protection.
- Oil-coolant separation design which meets the environment protection requirements allows centralized collection for all way oil.
Travels: 62.9" x 32.6" x 27.5"
| + Request Quote |
| + Discover More |
CPV-2200B 50 TAPER
Ultra rigid box way for heavy cutting and long term accuracy
 |
MACHINE FEATURES
- Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.
- Box ways on all 3 axes greatly upgrades stability and dampening capability.
- Automatic lubrication unit with intelligent pressure failure detection function provides reliable supply for saving cost and for environmental protection.
- Oil-coolant separation design which meets the environment protection requirements allows centralized collection for all way oil.
Travels: 86.6" x 40.1" x 31.4"
| + Request Quote |
| + Discover More |

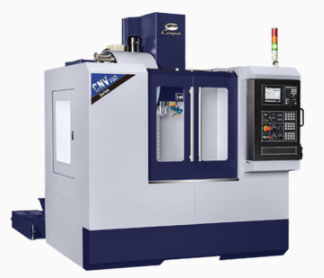

CNV-750
Linear way vertical machining center for high-speed cutting
 |
The CNV-750 is designed for long-term high accuracy, and superior surface finishes. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value.
- Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.
- The CNV-750 is equipped with high precision and heavy loading series linear guideways on all 3 axes. Automatic lubrication system for all linear guideways and ballscrews.
- The base is reinforced by “A” type rib layout to upgrade absorption capability of vibration and is constructed of a box type structure for excellent rigidity. The machine structure is designed via Finite Element Analysis (FEA) and advanced 3D software.
Travels: 29.5" x 16.9" x 18.9"
| + Request Quote |
| + Discover More |

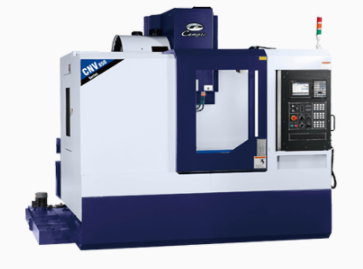

CNV-850
Linear way vertical machining center for high-speed cutting
 |
The CNV-850 is designed for long-term high accuracy, and superior surface finishes. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value.
- Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.
- The CNV-850 is equipped with high precision and heavy loading series linear guideways on all 3 axes. Automatic lubrication system for all linear guideways and ballscrews.
- The base is reinforced by “A” type rib layout to upgrade absorption capability of vibration and is constructed of a box type structure for excellent rigidity. The machine structure is designed via Finite Element Analysis (FEA) and advanced 3D software.
Travels: 33.4" x 20.3" x 20.3"
| + Request Quote |
| + Discover More |
CNV-1050
Linear way vertical machining center for high-speed cutting
 |
The CNV-1050 is designed for long-term high accuracy, and superior surface finishes. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value.
- Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.
- The CNV-1050 is equipped with high precision and heavy loading series linear guideways on all 3 axes. Automatic lubrication system for all linear guideways and ballscrews.
- The base is reinforced by “A” type rib layout to upgrade absorption capability of vibration and is constructed of a box type structure for excellent rigidity. The machine structure is designed via Finite Element Analysis (FEA) and advanced 3D software.
Travels: 41.3" x 21.2" x 20.4"
| + Request Quote |
| + Discover More |

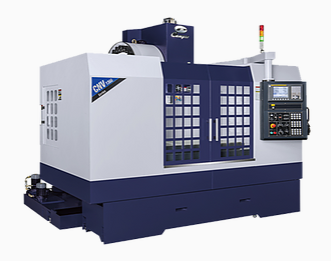

CNV-1300
Linear way vertical machining center for high-speed cutting
 |
The CNV-1300 is designed for long-term high accuracy, and superior surface finishes. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value.
- Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.
- The CNV-1300 is equipped with high precision and heavy loading series linear guideways on X and Y axes and rugged box ways on the Z axis.
- The base is reinforced by “A” type rib layout to upgrade absorption capability of vibration and is constructed of a box type structure for excellent rigidity. The machine structure is designed via Finite Element Analysis (FEA) and advanced 3D software.
- Our counter balance system is equipped with a guide rail for increased stability, thus avoiding vibration during high feed rates and rapid traverse, this ensures machining accuracy.
Travels: 51.1" x 23.6" x 24.0"
