SPINNER Multi-Turret Turning Centers

Highlights

THE productive turning solution for bar machining
Bar capacity 42 or 65 mm
Integrated robot-automation available for chucking operations
Real reduction of cycle time by simultaneous operations with three turrets (Triplex)
Two Y-axis (Triplex Version)
Each turret can work on both spindles -> lowest cycle-time
Usefull for complex turning and milling applications from bar material
For small, medium and large batch production
Quick and direct programming at the machine by conversational programming
Highly dynamic
High productivity
With affordable price for German technology

Mechanical Engineering

Turret 1: X/Y/Z
Turret 2: X/Z
Turret 3: X/Y/Z
Free chip-flow
Full casting machine body with three-point base
Perfect covers for guideways
Live tools and C-axis as standard
Two full Y-axis in turret 1 and 3 fully integrated in machine design Integrated motor spindles, liquid cooled
Integrated SPINNER anti-vibration system to increase cutting performance
Permanent three tool simultaneously cutting

Multi-Tasking CNC Lathes with 2 independent turrets

TTS-Duplex is a high performance Turning Center for simultaneous machining with Two turrets with

usually used for medium and high volume turning of complex workpieces.

+ Request Quote

+ Discover More

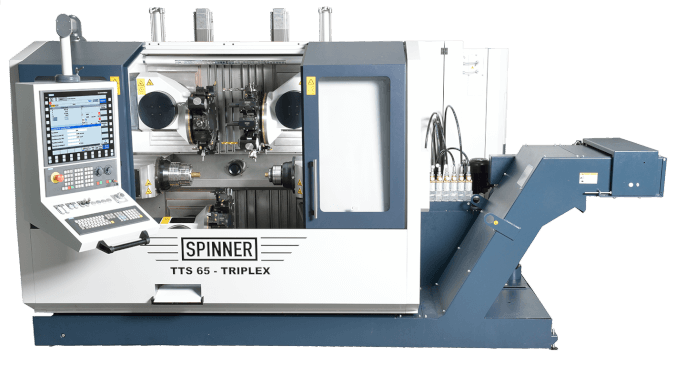

Multi-Tasking CNC Lathes with 3 independent turrets

TTS-Triplex is a high performance Turning Center for simultaneous machining with Two turrets with

usually used for medium and high volume turning of complex workpieces.
