GF Machining Solutions’ range of high-speed milling centers — engineered and built in Switzerland — boast the essential structural design, high-speed spindles, high feed rates, axis mechanism and best-in-class acceleration for machining complex three-dimensional surfaces across a wide range of applications.
Mikron is the world’s leading supplier of high-speed machining centers; with Spindles ranging from 12,000 to 60,000 RPM with best in class speed, accuracy, and surface finish capabilities. The high-speed milling machines manufactured in Switzerland by GF Machining Solutions are 10 times faster than conventional milling in term of cutting speed. Greater accuracy and a better surface finish are also achieved. This means that even tempered materials can be machined to a condition where they are largely ready to use. One essential advantage of HSM is that with systematic integration, the process chain can be significantly shortened. Mikron machining centers hold tolerances in tenths, not thousandths!

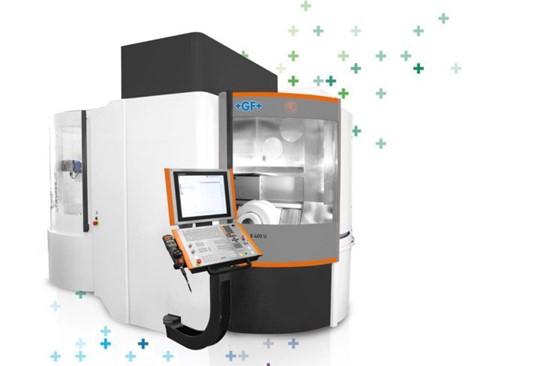

+ Ultra-high-speed machining performance and reliability for superior surface finishes and precise tolerances
Rapid Traverse X/Y/Z | 3937 ipm |
Tool magazine (incl. pallet) |
20 / 40 (HSK-E32) | 18 / 36 / 68 /168 / 308 (HSK-E40) |
Working Spindle |
42 000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm |
Travels | |
MILL X 400 U | 19.685 x 9.449 x 14.173 in |
MILL X 600 U | 31.496 x 23.622 x 19.685 in |

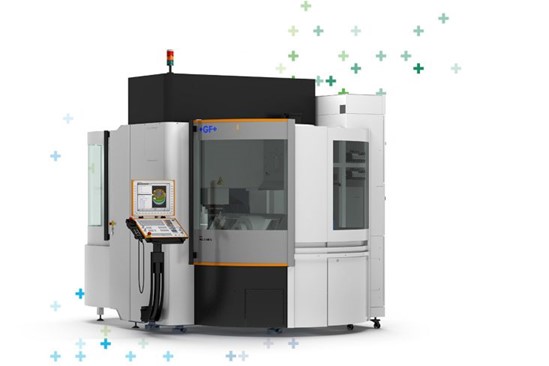

+ The high-speed milling solution that set the standard for performance and precision
Automation: pallet size/number | Macro Magnum 156/18 | ITS 148/20 mm/piece |
Control Unit | TNC 640 (Heidenhain) |
Rapid Traverse X/Y/Z | 2401 ipm |
Tool Magazine (incl. pallet) | 20 / 40 (HSK-E32) - 18 / 36 / 68 /168 / 308 (HSK-E40) |
Working Spindle | 42 000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm |
Travels | |
MILL S 200 U | 6.299 x 6.299 x 7.874 in |
MILL S 400 U | 19.685 x 9.449 x 14.173 in |
MILL S 600 U | 31.496 x 23.622 x 19.685 in |

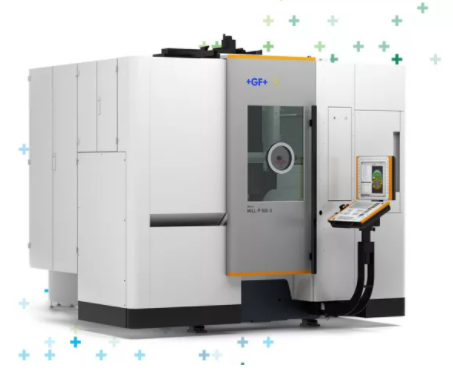

+ The high-performance 5-Axis milling solution for roughing and finishing in one machine
Automation: pallet size / number | GPS, Dynafix /7 Delphin /5 mm/piece
|
Control Unit | Heidenhain TNC 640/ 840D si |
Rapid Traverse X/Y/Z | 1772 / 2400 ipm |
Tool magazine (incl. pallet) |
30, 60, 120, 170, 215 |
Working Spindle | 20.000 (HSK-A63)/ 36 / 120 rpm/kW/Nm |
Travels | |
MILL P 500 U | 19.685 x 23.622 x 17.716 in |
MILL P 800 U | 31.496 x 31.496 x 21.654 in |
Simultaneous Turning Option |
31.496 x 31.496 x 21.654 in |

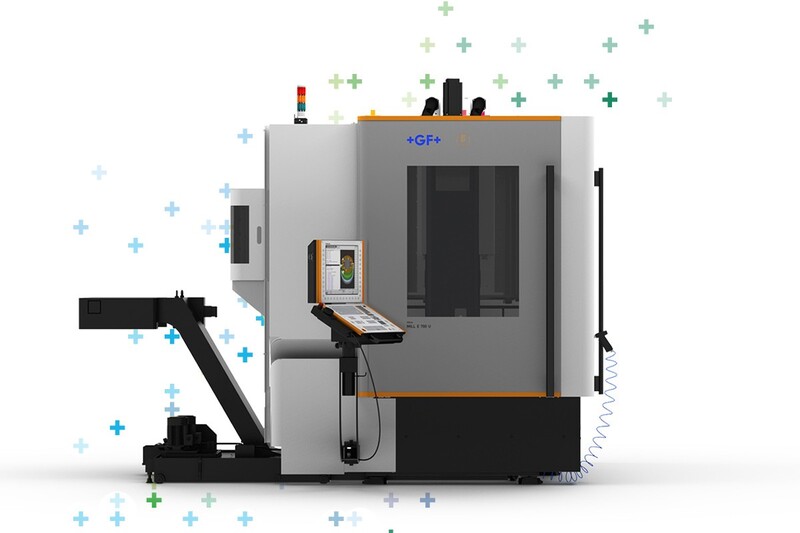

+ Produce with 100% quality and unleash your best with this affordable, high-efficiency 5-Axis machining solution.
Automation: pallet size / number | 5 Delphin 400/400 or5 MTS 400/400 or 7 Dynafix 350/350 or 7 UPC 320/320 mm/piece |
Control Unit | TNC 640 (Heidenhain) |
Rapid Traverse X/Y/Z | 1181/1181/1181 ipm |
Tool magazine (incl. pallet) | DT 30 / CT 60 |
Working Spindle | 12000 rpm / 22kW/ 88 Nm rpm/kW/Nm |
Travels | |
MILL E 500 U | 19.685 x 17.716 x 15.748 in |
MILL E 700 U | 27.559 x 23.622 x 19.685 in |
+ Efficient productive solution for large parts and molds
Automation: pallet size / number | 3 Pallet - T-slot parallel Ø1000(x840) mm |
Control Unit | TNC 640 (Heidenhain) |
Rapid Traverse X/Y/Z | 1260/1260/1260 ipm |
Tool magazine (incl. pallet) |
HSK 63: 30, 46, 92, 116, 212, 336 HSK 100: 32, 64, 90, 130, 175 |
Working Spindle |
10’000 / HSK-A100 15’000, 24’000 / HSK-A63 12’000 / HSK-T100 |
Travels | |
MILL E 1000 U | 39.37x 45.27 x 35.43 in |
MILL E 1400 U/ST | 54.33 x 45.27 x 35.43 in |
MILL E 1900 U/ST |
74.01x 45.27 x 36.6 in |
