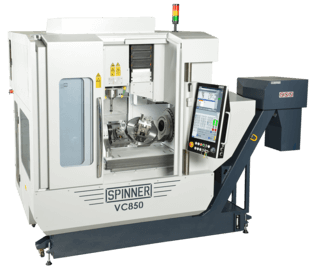

VC850-5A series is a 5-axis Vertical Machining Center with a very compact footprint with

• integrated rotary-/swivel table
• for high level 5-face and 5-axis machining applications
• compact workpieces up to about 350mm on rotary table
• high spindle speed up to 18.000 rpm
• Most modern high-level controls and drives
• with patented guideway covers that lead into minimum floor-space

which is usually sold for small-medium 5-axis applications and very limited floor space capacity.

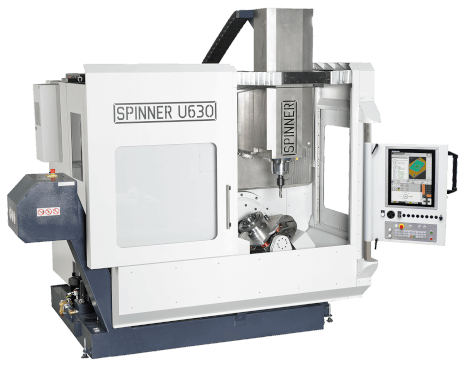

U5-630 Compact series is a 5-axis Vertical Machining Center to enter the 5-axis market at an affordable price with

• integrated swing/tilt-table in machine body
• for universal and precise 5-face and 5-axis machining applications
• moving column and therefore preferred for
• heavy workpieces
• high spindle speed up to 15.000 rpm
• Most modern high-level controls and drives
• available with standard pallet changing systems

usually sold for price-sensitive 5-face machining.

U5-630 Advanced series is a 5-axis Vertical Machining Center for high level and performing 5-axis machining with

• integrated swing/tilt-table in machine body
• for high level 5-face and 5-axis machining applications
• optionally with performance table and counter-weight function as well as big bore >100mm in table center
• moving column and therefore prefered for
• heavy workpieces
• high number of tools
• high spindle speed up to 20.000 rpm
• Most modern high-level controls and drives
• available with multiple automation applications

usually sold for very complex workpieces made in one operation all 5 faces as well as molding jobs.

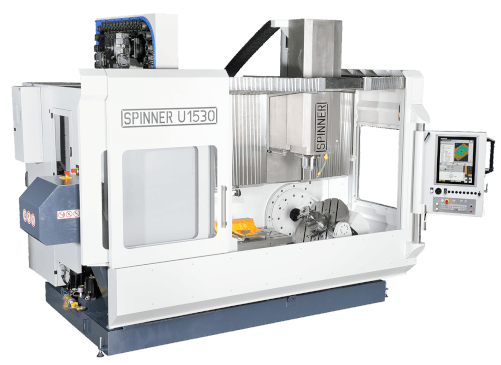

U5-1530 Compact series is a 5-axis Vertical Machining Center for entry-level at affordable price with

• integrated swing/tilt-table in machine body
• AND additional fixed table in left side of working area
• for high level 5-face machining applications
• moving column and therefore preferred for
• heavy workpieces
• high spindle speed up to 15.000 rpm
• Most modern high-level controls and drives
• available with multiple automation applications

usually sold for highly universal applications where customers machine 3-axis workpieces on the fixed table, 5-axis parts on the rotary-tilt table and long workpieces over both working areas as well, just in case needed for extra long workpieces. By taking off the top plate of the fixed table it is possible to support shaft-type workpieces of up to 400mm diameter with a tailstock and make 4-axis machining of long parts. So a very universal concept unique in the market and developed by SPINNER.

U5-1530 series is a 5-axis Vertical Machining Center for high level and performing 5-axis machining with

• integrated swing/tilt-table in machine body
• AND additional fixed table in left side of working area
• for high level 5-face and 5-axis machining applications
• optionally with performance table and counter-weight function as well as big bore >100mm in table center
• moving column and therefore preferred for
• heavy workpieces
• high number of tools
• high spindle speed up to 20.000 rpm
• Most modern high-level controls and drives
• available with multiple automation applications

usually sold for highly universal applications where customers machine 3-axis workpieces on the fixed table, 5-axis parts on the rotary-tilt table and long workpieces over both working areas as well, just in case needed for extra long workpieces. By taking off the top plate of the fixed table it is possible to support shaft-type workpieces of up to 400mm diameter with a tailstock and make 4-axis machining of long parts. So a very universal concept unique in the market and developed by SPINNER.

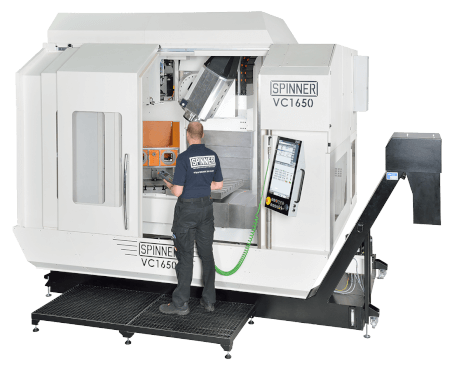

VC1650-5A series is a 5-axis Vertical Machining Center with very large working area with

• integrated rotary table in slide and
• tilting axis in spindle
• for high level 5-face and 5-axis machining applications
• heavy workpieces up to about 800x800x800mm on rotary table
• high number of tools
• high spindle speed up to 18.000 rpm
• Most modern high-level controls and drives
• with patented guideway covers that lead into minimum floor-space

which is usually sold for big parts, which need high number of tools, extreme long boring bars and a limited floor space available for such a big machine.
