 AgieCharmilles WIRE EDM
|
|
+GF+ Machining Solutions: AgieCharmilles EDM offers a wide array of Wire & Sinker EDM solutions to suit the needs of every level of manufacturer spanning from tool & die to precision part production. The innovative spirit of AgieCharmilles pioneered the first steps for EDM in the 1950s. Nowadays, AgieCharmilles continues to set the gold standard for the entire industry. |
|
⚡UNIQUA HMI - UNIQUA represents the pinnacle of more than a century of EDM technology – and the perfect combination of optimal functionality and ergonomics from previous controls. Read More or Watch The Video to learn more. |
|
|
⚡ISPS - Real time spark monitoring and adaptation means virtually ZERO wire breaks, even on stepped parts. Check out the video on YouTube |
|
|
⚡ iWire - Significantly reduces wire consumption by adapting wire speed in real time. |
|
⚡ TurboTech - Fine-tuning performance at the click of a button (literally) - Click For Turbo! |
|
⚡ Smart Wire - Machine auto-recognizes wire spool and adapts technology without operator intervention. This includes knowing if there is enough wire left on the spool to complete the current job program for streamlined setup and confident unattended operation. Significantly reduces potential for operator error. Read More |

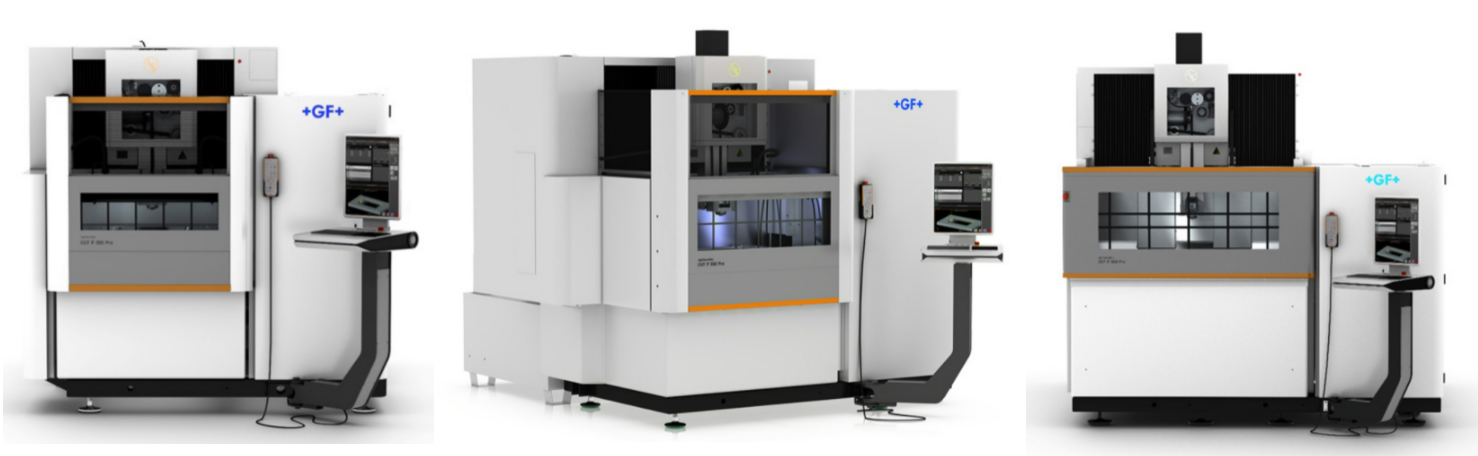

AgieCharmilles CUT P 350/550/800 Pro
+ Most versatile and productive Wire EDM series
 |
With reliable mechanics, advanced technology features and a new HMI, the new AgieCharmilles CUT P Pro Wire EDM delivers unmatched precision and performance for your EDM application.
- Engineered for productivity - Optimized for automation
- Large Taper - 30deg over the entire Z-Axis travel standard. 45 deg. opt.
- Large Travel with fixed worktable - up to 31.5 x 21.65 x 20 in.
- UNIQUA HMI
- SparkTrack
- Turbo Tech
- ISPS - Eliminate wire breaks
- iWire - Reduce wire consumption by adapting wire speed in real time.
- Integrated Collision Protection (ICP) on all 5 axes - zero downtime in the event of a crash
- Polymer granite construction for improved thermal stability and vibration dampening characteristics
- Water cooling for sensitive electronics
- Automatic Slug Management (ASM)
- Automatic Slug Welding (ASW)
- Cutting Speed: 37in2/hr.
- Accuracy: 2 µm
- Surface Finish: RA 0.08 µm
|
|
|
13.78 x 8.66 x 8.66 in
21.65 x 13.78 x 15.75 in
|
|
31.50 x 21.65 x 20 in
49.21 x 33.46 x 27.56 in |
AgieCharmilles CUT F 350/600
+ Wire EDM Series Optimized for Flexibility
 |
Whether tool cutting or part production; be it precision or performance; the CUT F Series is the flexible solution.
- Flexible process thanks to UNIQUA HMI
- Higher pitch accuracy
- Turbo Tech - fine tuning performance with the click of a button
- Liquid cooling for critical electronic components
- Optimal cutting speed through Spark Track
- ISPS - Eliminate Wire Breaks
- iWire - Reduce wire consumption by adapting wire speed in real time.
- Integrated Crash Protection (ICP)
- Cutting Speed: 28in2/hr.
- Accuracy: 3 µm
- Surface Finish: RA 0.12 µm
- Taper: ±30/1.5 or ±25/3.15
|
Travels: 13.78 x 9.843 x 9.646 in
Travels: 23.622 x 15.748 x 13.78 in |
AgieCharmilles CUT E 350/600
+ Low investment Wire EDM series for fast ROI
A compact, Swiss engineered, speed-oriented solution with an affordable price, the CUT E series Wire EDM is conceived to accelerate your return of investment.
Best performance in its category
- Tool & Die and General Purpose Wire EDM
- Speed oriented processes
- Now with UNIQUA HMI
- ISPG - High Performance Generator
- Small footprint
- Increase productivity
- Reduce cost per part
- Integrated Crash Protection (ICP)
- Cutting Speed: 28in2/hr.
- Accuracy: 3 µm
- Surface Finish: RA 0.12 µm
- Taper: ±30/1.5 or ±25/3.15
|
Travels: 13.78 x 9.843 x 9.646 in
Travels: 23.622 x 15.748 x 13.78 in |
AgieCharmilles CUT 2000/3000
+ The perfect balance between productivity and accuracy. Extremely accurate, flexible Wire EDM
- Extreme Accuracy & Micromachining
- Oiltech Solutions Available For Perfect Surface Finish
- Optical Vision Unit - In-Machine Optical measurement
- Cutting Speed: 28in2/hr.
- Accuracy: 1 μm
- Surface Finish: RA 0.08 µm
- Taper: 3/3.14
|
Travels: 13.78 x 9.84 x 10.08 in |
Travels: 19.68 x 13.78 x 10.08 in |
|
Travels: 13.78 x 9.84 x 10.08 in |
AgieCharmilles CUT 1000/1000 OilTech
+ Ultra-precision Wire EDM for Micro-machining
 |
|
The World Of Micro Dimensions
In the manufacture of high-precision stamping tools and in the production of micro components, best contour accuracy, finest surface finish and highest repeatability are absolute musts.
|
Higher design flexibility
- Achieve ultra fine radius over large heights. Increase your design flexibility and forget about manual guide change when using different wire diameters.
Miniaturize further
- Obtain the best accuracy on micro-electronics. An easy fine wire management is now at your fingerprints.
Achieve highest accuracy in any condition
- Ensure an absolutely constant temperature of the water in the work tank. The water is cooled in the main dielectric tank before recirculation. The water level is adjusted automatically to the workpiece height by raising and lowering the filled work tank.
Total accuracy and repeatability
- Due to an exclusive machine design concept, the CUT 1000 meets highly demanding requirements in terms of positioning accuracy. These results are possible thanks to a monoblock framework with separated X and Y axes.
Excelence in surface finish
- Get the best surface finish even on water conitions and forget about post-process polishing.
- Accuracy: 1 µm
- Surface Finish: RA 0.08 µm
|
Travels: 8.661 x 6.299 x 3.937 in |
Travels: 8.661 x 6.299 x 3.937 in |
AgieCharmilles CUT X
+ 100 years of experience condensed in the best-ever wire EDM machine
 |
X-Technologies
The X-technologies are a set of cutting technologies perfectly optimized for the CUT X design that condense the all values of the best-ever wire-cutting EDM machine.
Extreme accuracy
The X-technologies are dedicated to obtain ultra-high contour accuracy results thanks to the CUT X minimal distance from guide to work-piece and the revolutionary design of the flushing channels.
Simple
The operator does not need to compromise between accuracy, surface quality or speed. The X-technologies are designed to reach the best results in all 3 features with a unique set of technologies. Simple as that. The operator just needs to select the wire, the work-piece material, the height, the guiding system (open or closed) and the mono or twin-wire circuit in the UNIQUA HMI. The X-technologies do the rest.
Fast
The X-technologies are also the fastest, ensuring a very high productivity and a short payback of the CUT X machine. And being fast also means being cost-effective sustainable, as the wire consumption is reduced to the minimum.
|
Travels: 13.78 x 9.84 x 10.08 in
Travels: 19.68 x 13.78 x 10.08 in |
AgieCharmilles CUT AM 500
Horizontal Wire EDM for Additive Manufacturing Part Separation
The universal AgieCharmilles CUT AM 500—based on GF Machining Solutions’ more than 65 years of legendary EDM expertise—makes a significant contribution to the AM process: It is a fast, precise, affordable and Automation-ready alternative to using standard EDM or a band saw to separate additively manufactured parts from the build plate. The CUT AM 500 is the perfect complement to GF Machining Solutions’ and 3D Systems’ scalable, workflow-optimized DMP Factory 500 and DMP Flex/Factory 350 3D metal printing solutions.
- Fast, Horizontal Cutting Concept
- Double-Spool Reusable Wire
- Universal Interface
- Automation Ready
- Reduced Cost of Operation
|
Cutting Rate 3-4x FASTER than standard Wire EDM
|
|
Total Cost of Ownership 3x CHEAPER than standard Wire EDM
|
|
Total Leadtime 3-4x FASTER than a bandsaw
|
|
Total Cost of Ownership 6x CHEAPER than a bandsaw |
|
Max Part Size: 20.079 x 20.079 x 20.079 in |
AgieCharmilles FORM E Series
- General Purpose Tool & Die Sinker EDM
- C-Axis
- Shuttle tool changer
- EXCELLENT electrode wear ratio
- Positioning Accuracy: 50 nm
- Surface Finish: RA 0.1 µm
AgieCharmilles FORM P Series
- Deep rib machining
- Accura C-Axis
- Linear or rotary tool changer - Up to 160 tools
- Long term unattended machining - Automation ready
- EXCELLENT electrode wear ratio
- Positioning Accuracy: 50 nm
- Surface Finish: RA .08 µm
|
Travels: 13.78 x 9.84 x 11.81 in Travels: 23.62 x 15.74 x 17.71 in |
Travels: 35.43 x 27.55 x 19.68 in |
|---|
| (Back To Top) |
AgieCharmilles FORM S Series
- Micromachining
- 0% Graphite Electrode wear
- 3Ds mold surface texturing
- Accura C-Axis
- Surface finish: 0.08 µm
AgieCharmilles FORM X Series
Forming your extreme success Extreme accuracy, highest precision in production, and unparalleled productivity come together as future-shaping solutions with the AgieCharmilles FORM X die-sinking EDM series. This series’ TECFORM ensures highest accuracy and reproducibility on both big and small parts. This is due to the fixed table and stiff machine base delivering perfect positioning accuracy along the entire axis travel. The result: high precision throughout the machining area.
Ramp up your efficiency and quality, thanks to this die sinker’s new discharge circuit allowing spark erosion power modulation and the flexibility to maximize material removal. Achieve greater finishing detail by reducing the gap to a few microns. You’ll achieve higher machining yields while preserving electrode geometry, due to an extremely low rate of electrode wear.
- Micromachining
- Unprecedented Levels of Part Quality
- 0% Graphite Electrode wear
- 3Ds mold surface texturing
- Accura C-Axis
- Surface finish: 0.08 µm
AgieCharmilles DRILL 20
With numerical control axes X,Y and Z , AgieCharmilles DRILL 20 is widely used for drilling starting holes with the electrode range Ø 0.1 – 3.0 mm (0.004 – 0.12 in) and with electrode materials brass, copper and carbide, and workpiece materials steel and carbide.
- Wide range of technologies for material steel, hard metal, aluminum and copper etc.
- Fast programming and erosion for multi-holes with different diameters and technologies
- Fast set up cycles such as edge finding, center finding and corner finding with touch screen
AgieCharmilles Wire EDM Machine Guidance
Peak Machine Sales helps manufacturers compare AgieCharmilles wire EDM machines for precision cutting, tooling, mold and die work, production parts, and advanced EDM applications. Use this page to review the CUT machine families, compare new and used options, and contact Peak for help matching a wire EDM to your part size, tolerance, material, and production needs.
AgieCharmilles wire EDM options include CUT P, CUT F, CUT E, CUT X, CUT 1000, CUT 2000, CUT 3000, and specialized systems such as CUT AM. Each family serves a different balance of accuracy, automation, productivity, and application requirements.
Before Quoting A Wire EDM
- Part size, material, and thickness
- Tolerance and surface finish requirements
- Submerged cutting, taper, threading, and automation needs
- New machine or used wire EDM availability
- Consumables, wear parts, and long-term support
Need help choosing the right machine or consumable? Call Peak Machine Sales at (248) 380-0871.
