GF Machining Solutions’ range of high-speed milling centers — engineered and built in Switzerland — boast the essential structural design, high-speed spindles, high feed rates, axis mechanism and best-in-class acceleration for machining complex three-dimensional surfaces across a wide range of applications.
Mikron is the world’s leading supplier of high-speed machining centers; with Spindles ranging from 12,000 to 60,000 RPM with best in class speed, accuracy, and surface finish capabilities. The high-speed milling machines manufactured in Switzerland by GF Machining Solutions are 10 times faster than conventional milling in term of cutting speed. Greater accuracy and a better surface finish are also achieved. This means that even tempered materials can be machined to a condition where they are largely ready to use. One essential advantage of HSM is that with systematic integration, the process chain can be significantly shortened. Mikron machining centers hold tolerances in tenths, not thousandths!
Mikron MILL X 400/600/800
+ Ultra-high-speed machining performance and reliability for superior surface finishes and precise tolerances
 |
| Rapid Traverse X/Y/Z | 2401ipm |
| Tool magazine (incl. pallet) |
18 / 36 / 68 / 168 / 308 (HSK-E40) | 15 / 30 / 60 / 120 / 170 / 220 (HSK-E50) |
| Working Spindle |
42 000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm 36 000 (HSK-E50) / 33 / 21 rpm/kW/Nm |
| Travels | |
| MILL X 400 | 19.685 x 17.716 x 14.173 in |
| MILL X 600 | 23.622 x 23.622 x 19.685 in |
| MILL X 800 | 31.496 x 23.622 x 19.685 in |
Mikron MILL S 400/500/600/800
+ The high-speed milling solution that set the standard for performance and precision
 |
- Swiss Built Step-Tec Spindle
- 30k to 60k RPM - High RPM
- Oil/Air Lubricated - 24/7 Operation
- Linear Drives - Key to faster cycle times!
- 1.7G Acceleration - 2401 ipm
- Highest Accuracy and Cutting Speed
- Polymer Granite Base
- Highest level of thermostability and vibration dampening
- Designed for Productivity & Automation
- Ergonomic, No Operator Interference - 24/7 Lights Out Machining
- Heidenhain CNC
- Best in Class for 5-Axis, Contouring, Fully Loaded
| Rapid Traverse X/Y/Z | 2401ipm |
| Tool magazine (incl. pallet) |
18 / 36 / 68 / 168 / 308 (HSK-E40) | 15 / 30 / 60 / 120 / 170 / 220 (HSK-E50) |
| Working Spindle |
42 000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm 36 000 (HSK-E50) / 33 / 21 rpm/kW/Nm |
| Travels | |
| MILL S 400 | 19.685 x 17.716 x 14.173 in |
| MILL S 500 | 19.685 x 17.716 x 14.173 in |
| MILL S 600 | 23.622 x 23.622 x 19.685 in |
| MILL S 800 | 31.496 x 23.622 x 19.685 in |
Mikron MILL P 500
+ Reliably exceptional performance with uncompromising process security
 |
| Automation: pallet size / number: | Delphin 400 x 400 / 5 mm/piece |
| Travel X, Y, Z | 19.7 x 23.6 x 17.1 in |
| Clamping surface / max. load lbs: | 215.75 x 15.75 mm/lbs |
| Control unit | Fanuc 31i-B / Heidenhaim TNC 640 |
| Max. load (incl. pallet): | 661 lbs. |
| Rapid traverse X/Y/Z): | 1181 / 1181 / 1181 ipm |
| Tool magazine (incl. pallet): | DT 30 / CT 60 (HSK-E40) |
| Working Spindle: | 42,000 (HSK-E40 S6) / 13.5 / 8.8 rpm/kW/Nm |
| Travels | |
| MILL P 500 | 19.7 x 23.6 x 17.1 in |
Mikron MILL P 900
+ Ultimate Precision For Mold & Die
 |
- Roughing & finishing in one machine
- Step-Tec Spindle 20,000 RPM or 36,000 RPM
- 50hp
- MSP - Machine Spindle Protection - Eliminate crash risks
- Automation integrated through the center and rear of machine
- No operator interference
- Small footprint
- Polymer granite base
- 6x better vibration dampening
- 20x lower thermal conductivity
- Cooled base, drives, table, z-axis & spindle
- Added thermostability to ensure long term accuracy & repeatability
- Familiar Fanuc control loaded with options only available from GF Machining Solutions
| Automation: pallet size / number: | Delphin 400 x 400 / 5 mm/piece |
| Travel X, Y, Z | 35.43 x 23.62 x 17.71 in |
| Clamping surface / max. load lbs: | 215.75 x 15.75 / 1763 mm/lbs |
| Control unit | Fanuc 31i-B / Heidenhaim TNC 640 |
| Max. load (incl. pallet): | 2204 lbs. |
| Rapid traverse X/Y/Z): | 1181 / 1181 / 1181 ipm |
| Tool magazine (incl. pallet): | DT 30 / CT 60 (HSK-A63) | DT 30 / CT 60 (HSK-E50) |
| Working Spindle: | 20,000 min-1, HSK-A63 S6 / 36 / 120 / 36,000 min-1, HSK-E50 S6 / 33 / 21.3 rpm/kW/Nm |
| Travels | |
| MILL P 900 | 35.43 x 23.62 x 17.71 in |
Mikron MILL E 800/1200
+ Expand your expectation through an efficient production in universal applications
 |
- Quick to set up and easy to control
- Versatile solution for a wide range of applications
- Standard solution still with above average reliability and efficiency
| Control Unit | TNC 620 (Heidenhain) / Oi-MD (Fanuc) |
| Rapid Traverse X/Y/Z | 590 / 1180 ipm |
| Tol Magazine Including Pallet | 24 / 30 (ISO/BT-40) | 30 (HSK-A63) |
| Working Spindle | 9,000 (ISO / BT-40) / 9.5 / 71 rpm/kW/Nm |
| Travels | |
| MILL E 800 | 33.46 x 20.87 x 23.62 in |
| MILL E 1200 | 49.21 x 20.87 x 23.62 in |
Mikron Graphite Machining Solutions
+ High-speed graphite machining in a compact format
 |
Perfectly Flawless Surfaces
- No polishing is necessary with the Mikron Graphite Series’ finishing capabilities. Ra 0.4 µm surface fishes and ±5 µm accuracy ensures the quality required for demanding glass mold and electrode applications – and allow for the shortest end-to-end production process possible.
Unparalleled Quality With Step-Tec Spindles
- The highest precision and unbeatable surface quality is easily achieved with a 42,000 rpm Step-Tec Spindle. The short run-up and break-in times cut down on total production time, while the oil-air lubrication and other advanced feature help to maximize the spindle’s lifetime.
Get Parts Done Right The First Time
- GF Machining Solutions’ industry-leading high-speed machining technology, the ±1 µm repeatability of System 3R reference systems and a flexible, robust machine design with powerful dust extraction capabilities makes reliable, around-the-clock production a reality.
Machine Graphite Faster Than Ever Before
- As the fastest graphite-specific machines on the market, the MILL S Graphite series delivers highly dynamic performance that enables 25% faster cycle speeds compared to competitors’ machines – and integrated automation pushes the productivity improvements even further.
| Travels | |

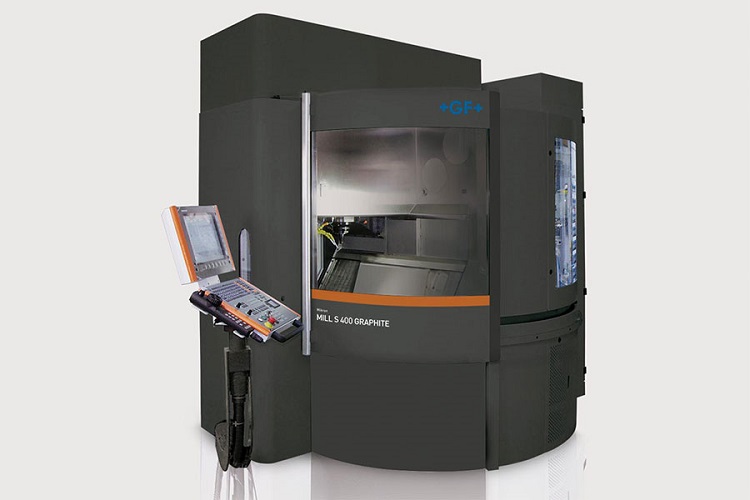

| MILL S 400 Graphite | 19.685 x 17.716 x 14.173 in |
| MILL S 500 Graphite | 19.685 x 17.716 x 14.173 in |
| HSM 500 Graphite | 23.622 x 23.622 x 19.685 in |
